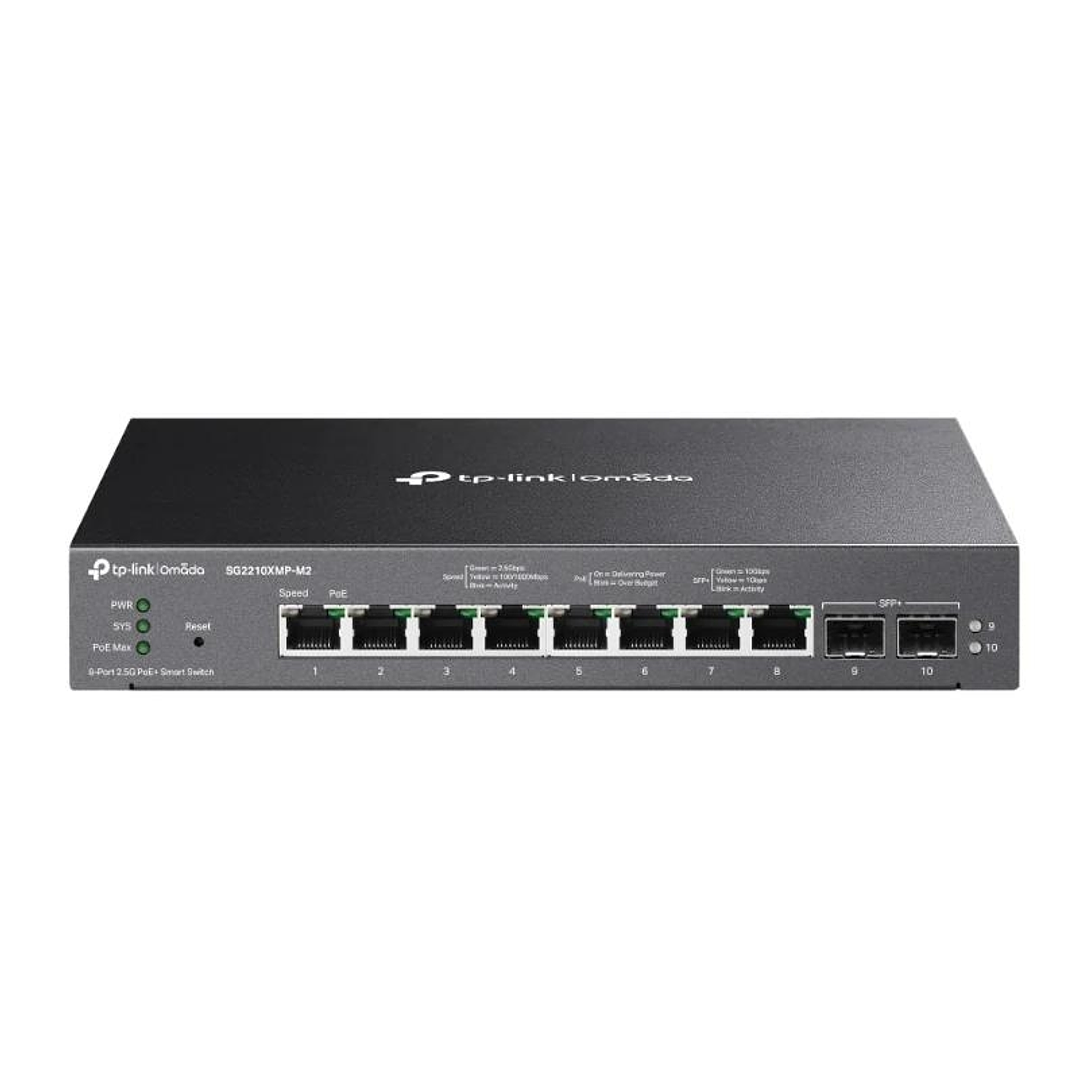

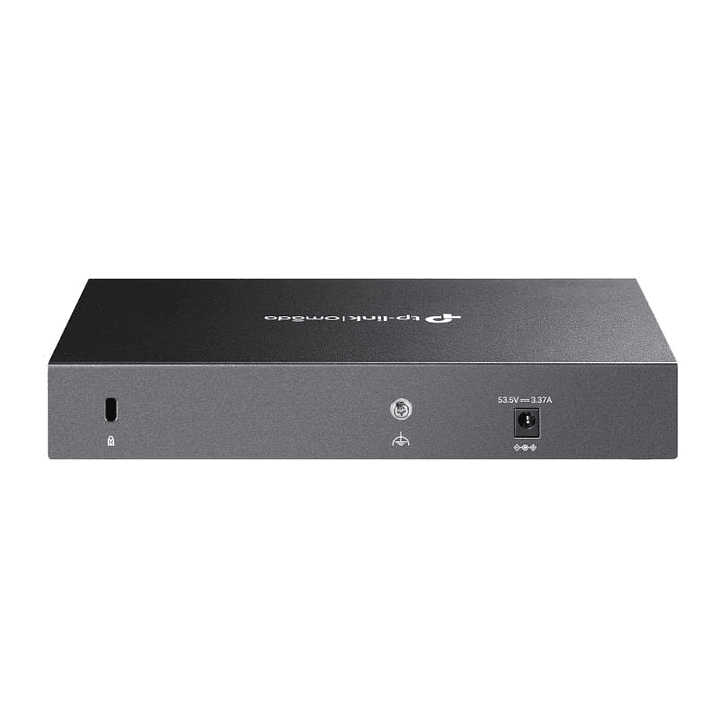

TP-Link SG2210XMP-M2 Switch 8x2,5Gb PoE+ 2xSFP+ 1 TP-Link SG2210XMP-M2 Switch 8x2,5Gb PoE+ 2xSFP+ 1

Descripción


Marca TP-Link
Modelo TL-SG1005LP
Características de Hardware - Interfaz:
  8 × 100/1000/2500 Mbps RJ45 PoE+ Ports
  2 × 10G SFP+ Slots
- Cantidad de ventiladores: Fanless
- Bloqueo de Seguridad Física
- Fuente de Alimentación: Adaptador de Corriente 53.5VDC/3.37A
- Puertos PoE (RJ45)
  Estándar: compatible con 802.3at/af
  Puertos PoE+: 8 puertos
  Presupuesto de energía PoE: 160 W
- Montaje: Sobremesa/Pared
- Consumo de Potencia Máximo: 180,1 W (110V/60Hz) (con 160 W PD conectado)
- Disipación máxima de calor: 614,58 BTU/hr (110 V/60 Hz) (con 160 W PD conectado)
- Dimensiones: 226 × 131 × 35 milímetros
Rendimiento - Capacidad de Conmutación: 80 Gbps
- Tasa de Reenvío de Paquetes: 59.52 Mpps
- Tabla de Direcciones MAC: 16 K
- Memoria del Buffer de Paquete: 12 Mbit
- Jumbo Frame: 9 KB
Características de Software Calidad de Servicio
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
  SP (Strict Priority)
  WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
  Port/Flow based Rating Limit
- Smoother Performance
- Storm Control
  Multiple Control Modes(kbps/ratio)
  Broadcast/Multicast/Unknown-Unicast Control
Características L2 y L2+
- 32 IP Interfaces: Support IPv4/IPv6 Interface
- Static Routing: 32 IPv4/IPv6 Static Routes
- DHCP Server
- DHCP Relay
  DHCP Interface Relay
  DHCP VLAN Relay
- DHCP L2 Relay
- Static ARP
- Proxy ARP
- Gratuitous ARP
- Link Aggregation
- Spanning Tree Protocol
- Loopback Detection
- 802.3x Flow Control
- Mirroring
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED
Multicast L2
- 511 IPv4, IPv6 shared multicast groups
- IGMP Snooping
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- Limited IP Multicast (256 profiles and 16 entries per profile)
Características Avanzadas
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
VLAN
- VLAN Group
  Max 4K VLAN Groups
- 802.1Q Tagged VLAN
- MAC VLAN: 12 Entries
- Protocol VLAN
- GVRP
- Voice VLAN
Lista de Control de Acceso
- Support up to 230 entries
- Time-based ACL
- MAC ACL
- IP ACL
- IPv6 ACL
- Combined ACL
- Rule Operation: Permit/Deny
- Policy Action
  Mirroring
  Redirect
  Rate Limit
  QoS Remark
- ACL Rules Binding
  Port Binding
  VLAN Binding
Seguridad
- IP-MAC-Port Binding
- AAA
- 802.1X
  Port based authentication
  MAC (Host) based authentication
  Authentication Method includes PAP/EAP-MD5
  MAB
  Guest VLAN
  Support Radius authentication and accountability
- IP/IPv6-MAC Binding
  512 Binding Entries
  DHCP Snooping
  DHCPv6 Snooping
  ARP Inspection
  ND Detection
  ND Snooping
- IP Source Guard
  253 Entries
  Source IP+Source MAC
- IPv6 Source Guard
  183 Entries
  Source IPv6 Address+Source MAC
- DoS Defend
- DHCP Filter
- Static/Dynamic/Permanent Port Security
  Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC based access control
IPv6
- IPv6 Static Routing and ACL
- IPv6 Dual IPv4/IPv6
- IPv6 Interface
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery
|

TP-Link SG2210XMP-M2 Switch 8x2,5Gb PoE+ 2xSFP+
